24 - Depth Buffering

Until now the quad was flat and alone, so depth wasn’t a question - whatever we drew ended up on screen. This step brings in a real depth buffer and a second quad behind the first, so the GPU gets to decide what’s in front of what. While we’re at it, the projection matrix gets a cleanup: the ubo.proj[1, 1] *= -1 hack from step 20 goes away, replaced by a small matrix4_perspective_vulkan proc that bakes the Vulkan Y flip and depth range in.

The full source for this step lives in src/24_depth_buffering/main.odin.

The corresponding chapters in the Vulkan Tutorial are:

Khronos version: https://docs.vulkan.org/tutorial/latest/07_Depth_buffering.html
vulkan-tutorial.com version: https://vulkan-tutorial.com/Depth_buffering

What’s new, in one glance

Vertex.pos becomes a vec3, the vertices get z coordinates, and there are now two quads (z=0 and z=-0.5) so one is actually behind the other.
create_image_view gets an aspect_flags parameter instead of hard-coding .COLOR; the depth view is created with {.DEPTH}.
Three small helpers appear: find_supported_format, find_depth_format, has_stencil_component, to pick a depth format at runtime.
depth_format is resolved once in main and passed to create_depth_resources and create_graphics_pipeline, instead of each proc re-querying it.
create_depth_resources allocates the depth image, its memory and its view - same plumbing as the texture image from step 21, reusing create_image / create_image_view.
The graphics pipeline finally gets a real PipelineDepthStencilStateCreateInfo (it was commented out until now), a depthAttachmentFormat on its PipelineRenderingCreateInfo, and pDepthStencilState wired up.
begin_rendering passes a RenderingAttachmentInfo for depth with loadOp = .CLEAR and storeOp = .DONT_CARE, and record_command_buffer transitions the depth image to DEPTH_STENCIL_ATTACHMENT_OPTIMAL before rendering.
update_uniform_buffer switches to a custom matrix4_perspective_vulkan proc; the ubo.proj[1, 1] *= -1 flip is gone.

Picking a depth format

Vulkan won’t promise a single depth format. D32_SFLOAT (32-bit float) is the usual one on desktop, but some GPUs only have D24_UNORM_S8_UINT (24-bit depth + 8-bit stencil). So we ask the implementation, the same way the tutorial does, by walking a list of candidates:

find_supported_format :: proc(physical_device: vk.PhysicalDevice, candidates: []vk.Format, tiling: vk.ImageTiling, features: vk.FormatFeatureFlags) -> vk.Format {
	for format in candidates {
		props: vk.FormatProperties
		vk.GetPhysicalDeviceFormatProperties(physical_device, format, &props)

		if tiling == .LINEAR && (props.linearTilingFeatures & features) == features {
			return format
		}

		if tiling == .OPTIMAL && (props.optimalTilingFeatures & features) == features {
			return format
		}
	}

	fmt.eprintln("Impossible to find format in candidates: %q", candidates)
	os.exit(1)
}

find_depth_format :: proc(physical_device: vk.PhysicalDevice) -> vk.Format {
	return find_supported_format(physical_device, {.D32_SFLOAT, .D32_SFLOAT_S8_UINT, .D24_UNORM_S8_UINT}, .OPTIMAL, {.DEPTH_STENCIL_ATTACHMENT})
}

The {.D32_SFLOAT, .D32_SFLOAT_S8_UINT, .D24_UNORM_S8_UINT} literal is an Odin array literal passed where a []vk.Format is expected - Odin lets you initialize a slice (or any array-like) inline with a brace-enclosed list.

The bit-test (props.optimalTilingFeatures & features) == features is the usual Vulkan “do we have at least these features” check. It’s == features, not != 0 - we want a format that has all the requested bits, not just any of them. If you’ve read step 18, you’ve seen the same idiom in find_memory_type.

has_stencil_component is there for later, to tell us whether a depth format also carries a stencil channel:

has_stencil_component :: proc(format: vk.Format) -> bool {
	return format == .D32_SFLOAT_S8_UINT || format == .D24_UNORM_S8_UINT
}

The depth resources

create_depth_resources is short because it leans on the image helpers we already wrote:

create_depth_resources :: proc(
	physical_device: vk.PhysicalDevice,
	device: vk.Device,
	depth_format: vk.Format,
	swap_chain_extent: vk.Extent2D,
) -> (
	vk.Image,
	vk.DeviceMemory,
	vk.ImageView,
) {

	depth_image, depth_image_memory := create_image(
		physical_device,
		device,
		swap_chain_extent.width,
		swap_chain_extent.height,
		depth_format,
		{.DEPTH_STENCIL_ATTACHMENT},
		{.DEVICE_LOCAL},
	)
	depth_image_view := create_image_view(device, depth_image, depth_format, {.DEPTH})

	return depth_image, depth_image_memory, depth_image_view
}

Same shape as create_texture_image, minus the upload: a DEVICE_LOCAL image with DEPTH_STENCIL_ATTACHMENT usage, and a view over the .DEPTH aspect. The depth format is decided in main and passed in, not re-queried inside the proc - main also needs the same format for the graphics pipeline, and asking twice would be silly. That’s the small refactor visible in the diff: depth_format is now a parameter.

The depth image lives as long as the swap chain: created right after it, recreated in recreate_swap_chain on resize, and torn down with a matching destroy_depth_resources. Forgetting the destroy on resize leaks an image, a view and a chunk of device memory per resize - validation won’t necessarily catch it, your memory usage will.

create_image_view had to change for this to work. Up to step 23 it hard-coded {.COLOR} as the aspect:

subresourceRange = {{.COLOR}, 0, 1, 0, 1},

Now it takes an aspect_flags parameter:

create_image_view :: proc(device: vk.Device, image: vk.Image, format: vk.Format, aspect_flags: vk.ImageAspectFlags) -> vk.ImageView {
	create_info := vk.ImageViewCreateInfo {
		sType            = .IMAGE_VIEW_CREATE_INFO,
		viewType         = .D2,
		format           = format,
		subresourceRange = {aspect_flags, 0, 1, 0, 1},
		// ...
	}

Every existing call site gets {.COLOR} passed in explicitly, the depth view gets {.DEPTH}. Pass the wrong aspect and validation will tell you the image view’s aspect doesn’t match what’s expected for the attachment.

The graphics pipeline learns about depth

A few things change in create_graphics_pipeline. The depth/stencil state, which was commented out until now, gets filled in:

depth_stencil := vk.PipelineDepthStencilStateCreateInfo {
	depthTestEnable       = true,
	depthWriteEnable      = true,
	depthCompareOp        = .LESS,
	depthBoundsTestEnable = false,
	stencilTestEnable     = false,
}

depthTestEnable = true makes the GPU compare each fragment’s depth against the buffer. depthWriteEnable = true lets it write the new depth back when the test passes. depthCompareOp = .LESS means “keep the fragment if it’s closer than what’s already there”, so depth = 1.0 has to mean “far away” - which lines up with the clear value used in begin_rendering. depthBoundsTestEnable is a niche feature for restricting depth to a sub-range, we don’t use it. stencilTestEnable stays false, we have no stencil channel.

Then the PipelineRenderingCreateInfo (the pNext we use because we do dynamic rendering instead of a VkRenderPass) gets depthAttachmentFormat:

pipeline_rendering_create_info := vk.PipelineRenderingCreateInfo {
	sType                   = .PIPELINE_RENDERING_CREATE_INFO,
	colorAttachmentCount    = 1,
	pColorAttachmentFormats = &format,
	depthAttachmentFormat   = depth_format,
}

With dynamic rendering the pipeline doesn’t inherit attachment formats from a render pass, so it has to be told what the depth attachment looks like. Mismatch this and pipeline creation fails - the driver has to know whether to expect D32_SFLOAT, D24_UNORM, etc.

And pDepthStencilState finally gets wired up:

graphics_pipeline_create_info := vk.GraphicsPipelineCreateInfo {
	// ...
	pDepthStencilState = &depth_stencil,
	// ...
}

depthAttachmentFormat and pDepthStencilState go in pairs - set one without the other and pipeline creation fails. create_graphics_pipeline now takes depth_format as a parameter, threaded down from main where find_depth_format was called once.

begin_rendering adds a depth attachment

begin_rendering builds a second RenderingAttachmentInfo for depth and hooks it onto RenderingInfo:

depth_attachment_info := vk.RenderingAttachmentInfo {
	sType = .RENDERING_ATTACHMENT_INFO,
	imageView = depth_image_view,
	imageLayout = .DEPTH_STENCIL_ATTACHMENT_OPTIMAL,
	loadOp = .CLEAR,
	storeOp = .DONT_CARE,
	clearValue = {depthStencil = {1.0, 0}},
}

render_info := vk.RenderingInfo {
	sType = .RENDERING_INFO,
	renderArea = {extent = swap_chain_extent},
	pColorAttachments = &attachment_info,
	colorAttachmentCount = 1,
	pDepthAttachment = &depth_attachment_info,
}

loadOp = .CLEAR clears the attachment at the start of the pass, so the depth buffer starts at the clear value on every frame. storeOp = .DONT_CARE means we don’t care about the contents after rendering - we never read the depth buffer back, never sample from it, never copy it anywhere. The Vulkan Tutorial notes this “may allow the hardware to perform additional optimizations”: the driver is free to skip persisting the depth attachment to memory between frames. Reach for .STORE only if you actually need the depth buffer after the pass ends (sampling from it in a later pass, copying it to a host-visible buffer, etc.).

clearValue = {depthStencil = {1.0, 0}} clears depth to 1.0 (the farthest, since our compare is .LESS) and stencil to 0 (unused). With D32_SFLOAT you write a float, with D24_UNORM_S8_UINT you’d write a normalized integer - use 1.0 in both cases, the driver converts.

imageLayout = .DEPTH_STENCIL_ATTACHMENT_OPTIMAL is the layout record_command_buffer transitions the depth image into before CmdBeginRendering (see below). If the layout you declare here doesn’t match what the image is actually in at CmdBeginRendering time, validation complains loudly.

Layout transition for the depth image

record_command_buffer now does two layout transitions before CmdBeginRendering. The color one you already know. The depth one is similar, it just uses depth-specific masks and stages:

transition_image_layout(
	command_buffer,
	depth_image,
	.UNDEFINED, // old_layout
	.DEPTH_STENCIL_ATTACHMENT_OPTIMAL, // new_layout
	{.DEPTH_STENCIL_ATTACHMENT_WRITE}, // src_access_mask
	{.DEPTH_STENCIL_ATTACHMENT_WRITE}, // dst_access_mask
	{.EARLY_FRAGMENT_TESTS, .LATE_FRAGMENT_TESTS}, // src_stage
	{.EARLY_FRAGMENT_TESTS, .LATE_FRAGMENT_TESTS}, // dst_stage
	{.DEPTH}, //image_aspect_flags
)

The access masks look symmetric, and that’s normal for an “I just want to transition into this layout” barrier: previous depth-stencil writes are done before the transition, future depth-stencil writes can start after. The stages are the ones that touch depth - depth testing happens around the early/late fragment test stages, so the barrier waits on those and unblocks those.

The old layout is .UNDEFINED because we don’t care what was there before - we’re going to clear it. Using .UNDEFINED as the source is a free “discard previous contents”, the standard pattern for color and depth attachments at the start of a frame.

The image aspect is {.DEPTH} and not {.DEPTH | .STENCIL} because our chosen format (D32_SFLOAT) has no stencil channel. If you switch to a format with stencil later, you’ll need {.DEPTH, .STENCIL}.

A custom perspective matrix

I’d like to take a few minutes to explain a change that isn’t always easy for those of us who aren’t graphics math wizards (myself included). Until now we’ve been using matrix4_perspective from core:math/linalg to build the projection matrix. We were already doing a small hack by flipping Y, so our screen coordinates would match Vulkan’s convention.

Another important difference between OpenGL and Vulkan is how depth is handled. In OpenGL, depth goes from -1 (near plane) to +1 (far plane). In Vulkan it goes from 0 (near) to +1 (far). In the Vulkan Tutorial, the author uses GLM, which has the GLM_FORCE_DEPTH_ZERO_TO_ONE compile flag that does exactly what we need for Vulkan. Odin’s core:math/linalg doesn’t have anything similar. So I had to write a custom proc that gives us, in Odin, the matrix we actually need. As a bonus, I baked the Y flip directly into the new proc that returns the perspective matrix, so the old ubo.proj[1, 1] *= -1 line is gone.

Let’s quickly look at the difference between our proc and the one from core:math/linalg.

From core:math/linalg:

matrix4_perspective_f32 :: proc "contextless" (fovy, aspect, near, far: f32, flip_z_axis := true) -> (m: Matrix4f32) {
	tan_half_fovy := math.tan(0.5 * fovy)
	m[0, 0] = 1 / (aspect * tan_half_fovy)
	m[1, 1] = 1 / (tan_half_fovy)
	m[2, 2] = (far + near) / (far - near)
	m[3, 2] = 1
	m[2, 3] = -2 * far * near / (far - near)

	if flip_z_axis {
		m[2] = -m[2]
	}

	return
}

And ours:

matrix4_perspective_vulkan :: proc(fovy, aspect, near, far: f32) -> (m: mat4) {
	tan_half_fovy := math.tan(0.5 * fovy)
	m[0, 0] = 1 / (aspect * tan_half_fovy)
	m[1, 1] = -1 / (tan_half_fovy)
	m[2, 2] = -far / (far - near)
	m[3, 2] = -1
	m[2, 3] = -(far * near) / (far - near)

	return
}

You can see the difference in how Z is handled: linalg uses m[3, 2] = 1 and m[2, 3] = -2 * far * near / (far - near), ours uses m[3, 2] = -1 and m[2, 3] = -(far * near) / (far - near). Those are what make sure Z stays in [0, 1] for Vulkan instead of [-1, 1] for OpenGL.

The negative sign added on m[1, 1] = -1 / (tan_half_fovy) (linalg has 1 / (tan_half_fovy) positive) is the same thing as the old ubo.proj[1, 1] *= -1 line: it flips Y so Vulkan’s down-pointing Y ends up rendering the right way up.

Vertices are now 3D

Vertex.pos becomes a vec3:

Vertex :: struct {
	pos:      vec3,
	color:    vec3,
	texCoord: vec2,
}

The vertices get z coordinates - two quads, one at z=0 and one at z=-0.5:

vertices := []Vertex{
	{pos = {-0.5, -0.5, 0.0}, color = {1.0, 0.0, 0.0}, texCoord = {1.0, 0.0}},
	{pos = {0.5, -0.5, 0.0}, color = {0.0, 1.0, 0.0}, texCoord = {0.0, 0.0}},
	{pos = {0.5, 0.5, 0.0}, color = {0.0, 0.0, 1.0}, texCoord = {0.0, 1.0}},
	{pos = {-0.5, 0.5, 0.0}, color = {1.0, 1.0, 1.0}, texCoord = {1.0, 1.0}},
	{pos = {-0.5, -0.5, -0.5}, color = {1.0, 0.0, 0.0}, texCoord = {1.0, 0.0}},
	{pos = {0.5, -0.5, -0.5}, color = {0.0, 1.0, 0.0}, texCoord = {0.0, 0.0}},
	{pos = {0.5, 0.5, -0.5}, color = {0.0, 0.0, 1.0}, texCoord = {0.0, 1.0}},
	{pos = {-0.5, 0.5, -0.5}, color = {1.0, 1.0, 1.0}, texCoord = {1.0, 1.0}},
}

The back quad is at z=-0.5, which (because of the view = matrix4_look_at(..., vec3{0.0, 0.0, 0.0}, ...) setup) sits away from the camera. That’s what makes depth matter at all: without depth testing, draw order wins and the back quad could end up painted on top of the front one. With depth testing, the GPU compares z and keeps the closer one.

The vertex attribute description gets R32G32B32_SFLOAT for position:

{binding = 0, location = 0, format = .R32G32B32_SFLOAT, offset = u32(offset_of(Vertex, pos))},
{binding = 0, location = 1, format = .R32G32B32_SFLOAT, offset = u32(offset_of(Vertex, color))},
{binding = 0, location = 2, format = .R32G32_SFLOAT, offset = u32(offset_of(Vertex, texCoord))},

offset_of(Vertex, pos) reflects that pos is now 12 bytes (3 floats). offset_of recomputes this at compile time, which is exactly why you want to use it instead of writing 0, 12, 24, … by hand: changing pos from vec2 to vec3 shifts every subsequent field, and offset_of adjusts without you thinking about it.

The shader now expects 3 floats for position and uses float4(input.inPosition, 1.0) instead of float4(input.inPosition, 0.0, 1.0):

struct VSInput {
    float3 inPosition;
    // ...
};

VSOutput vertMain(VSInput input) {
    // ...
    output.pos = mul(ubo.proj, mul(ubo.view, mul(ubo.model, float4(input.inPosition, 1.0))));
    // ...
}

In step 23 the same line was float4(input.inPosition, 0.0, 1.0) but with inPosition a float2, so it expanded to (x, y, 0.0, 1.0) - z hardcoded to 0, w already 1. Here inPosition is a float3, so float4(input.inPosition, 1.0) is (x, y, z, 1.0): z now comes from the vertex data, w is still 1. The homogeneous w stayed at 1 the whole time; what changed is that z is no longer padding.

The indices are now two quads instead of one:

indices := []u16{0, 1, 2, 2, 3, 0, 4, 5, 6, 6, 7, 4}

Same winding (front quad, then back quad). Keep an eye on the winding if you ever enable backface culling - these indices all use the same winding as the original quad, so both quads are visible from the same side.

Test it

The startup log is the same as step 23 up to the Descriptor sets... OK line. A new Depth resource... OK line appears after the swap chain image views.

The window now shows two quads at different depths. As the model matrix rotates the whole thing around the z axis, the rear quad peeks out from behind the front quad and disappears back behind it. Without depth testing the back quad would just paint over the front one half the time. With depth testing, the closer fragments always win.

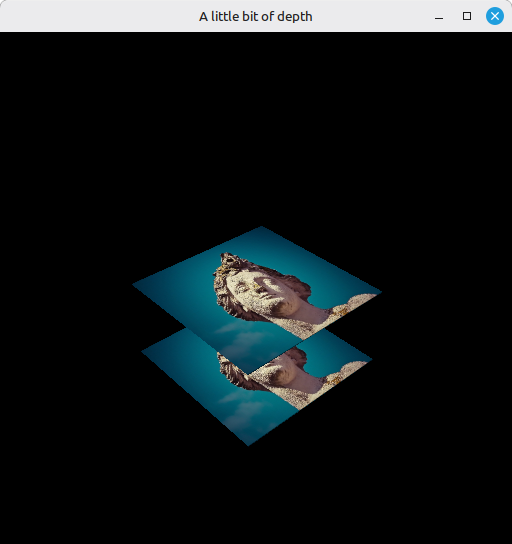

Vulkan window with the front and back quads using depth buffering

A few validation errors you might hit:

“Image layout X doesn’t match expected layout Y” when CmdBeginRendering runs: usually the imageLayout in depth_attachment_info doesn’t match the layout transition_image_layout actually transitioned the depth image to. Both must be DEPTH_STENCIL_ATTACHMENT_OPTIMAL.
“Pipeline layout format doesn’t match render pass format” at pipeline creation (or the equivalent for dynamic rendering): your depthAttachmentFormat and the actual depth image format don’t agree. Both come from depth_format in main, so they should - unless you hard-coded one of them somewhere.
The depth buffer not actually occluding anything: if the back quad always ends up on top of the front quad regardless of rotation, depthTestEnable or depthWriteEnable is probably false, pDepthStencilState is nil, or you forgot to wire up pDepthAttachment in render_info.

If the picture looks the same as step 23 (no second quad, no sense of depth), make sure you actually passed the new vertices/indices to the buffers and updated to a float3 everywhere - it’s easy to forget a transfer_to_buffer call or to leave the index count at 6 instead of 12.

What’s next

We now have a working depth buffer with two quads to demonstrate occlusion. The geometry is still hand-rolled, though, and the camera is fixed. The next step, 25 - Loading models, finally lets us load a real 3D model from a file instead of typing vertices by hand.
